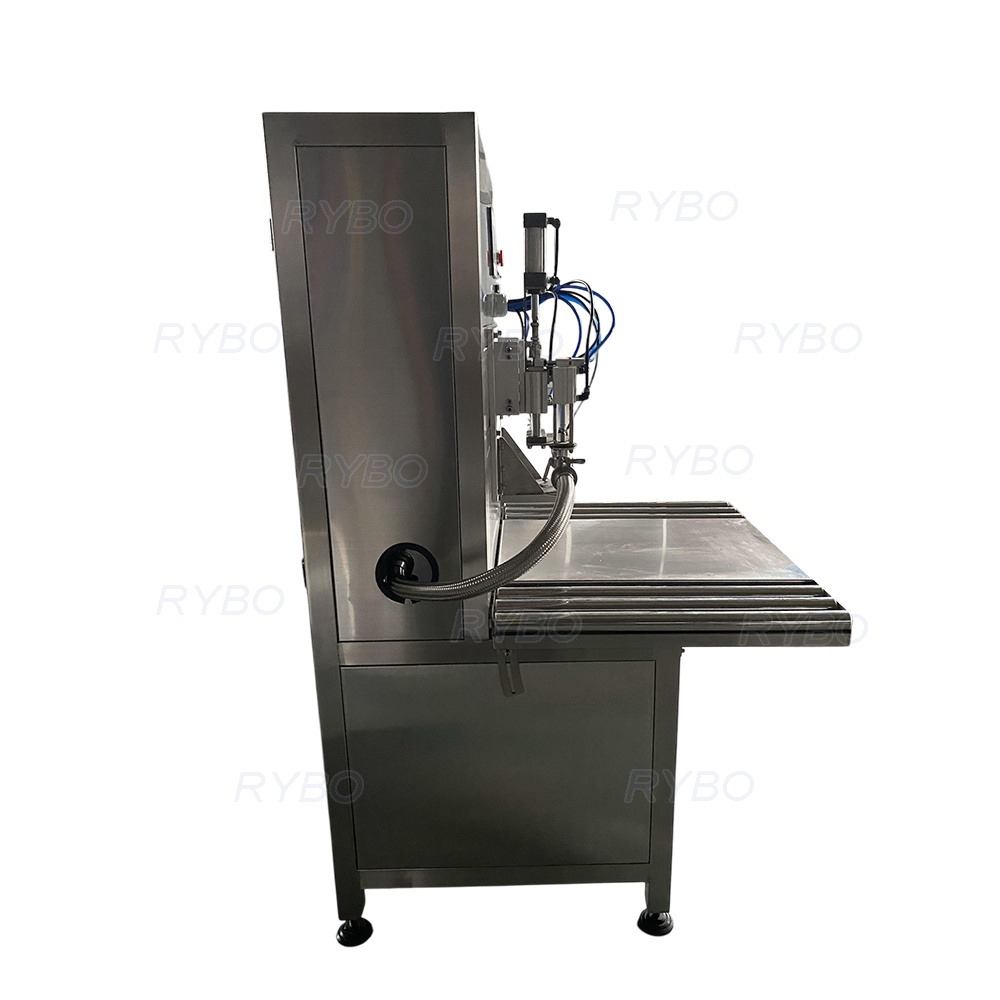

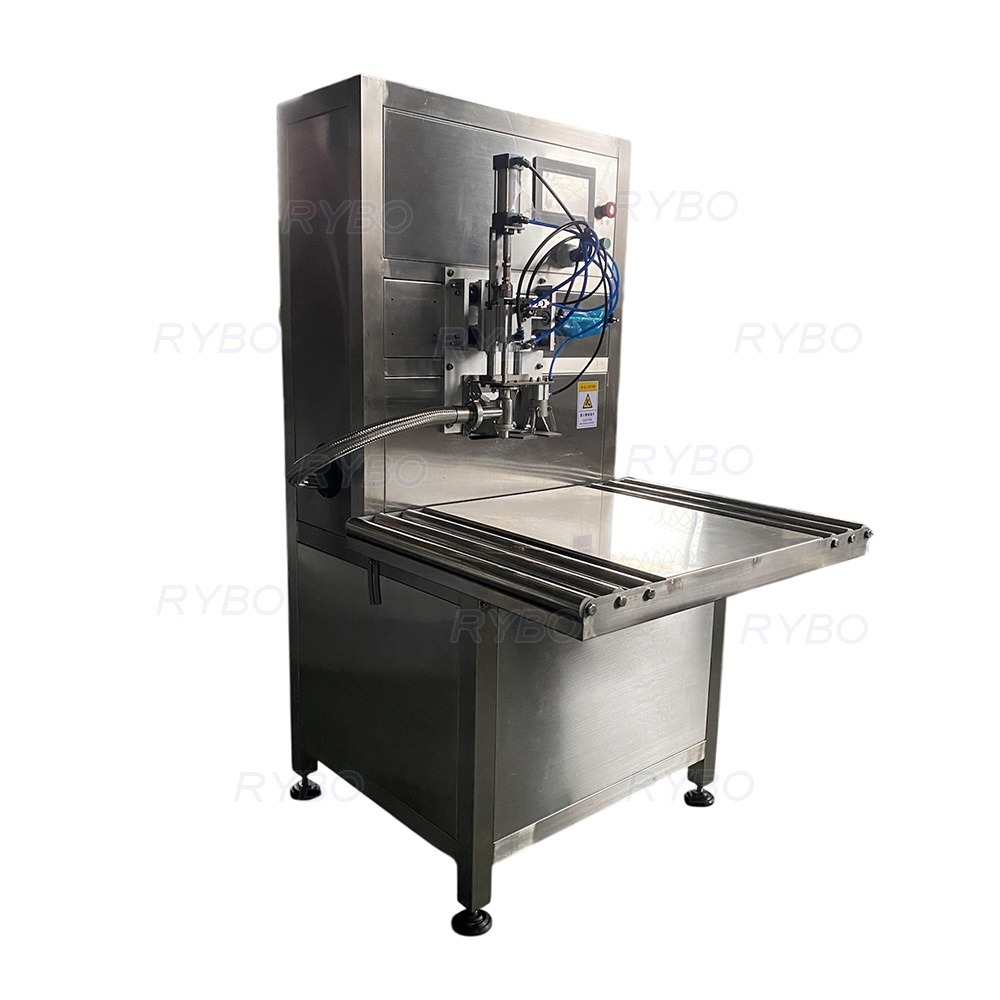

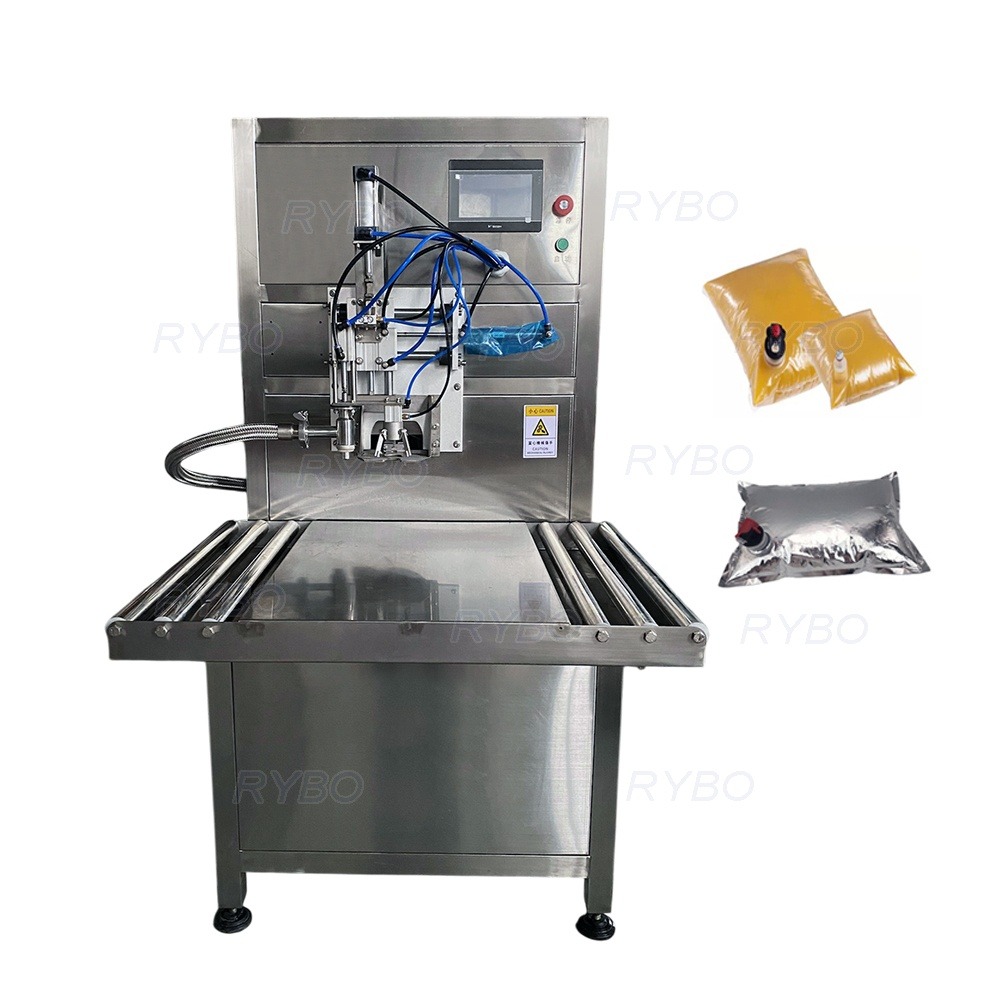

The machine is specially designed for bag-in-box filling, adopting flowmeter measuring with high filling precision.

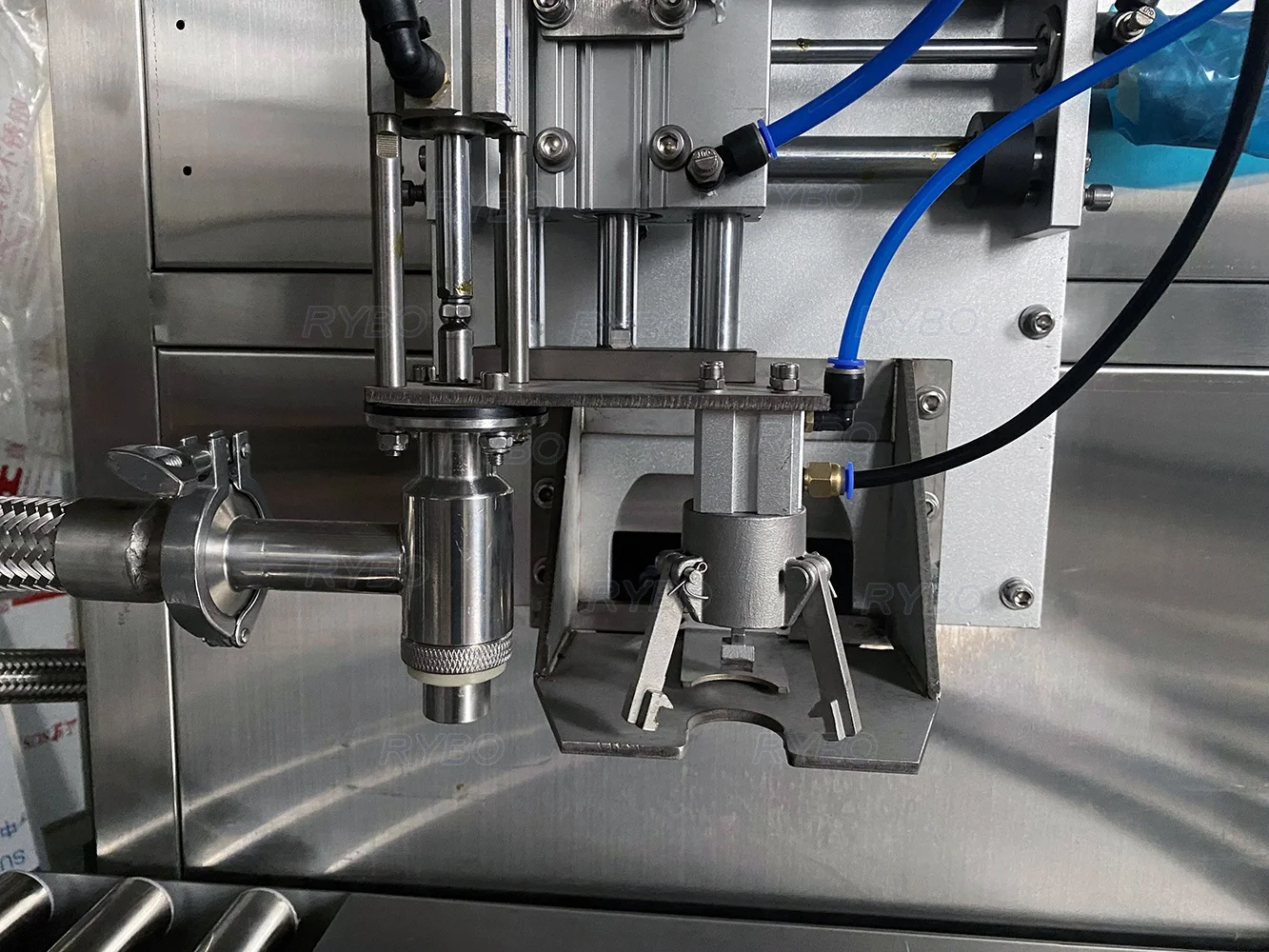

It can automatically open the cap, fill, then close the cap, people only need to put the empty bag on the machine, then take the filled bag away from the machine.
|
Model
|
Filling Nozzles
|
Output (5L bag)
|
Filling Volume
|
Power (kW)
|
Dimension (mm)
|
|
BIB-A1
|
1pc
|
200bags/hour
|
1~20L
|
0.38
|
800*1050*2100
|
|
BIB-A2
|
2pc
|
400bags/hour
|
1~20L
|
0.76
|
1600*1050*2100
|
|
BIB-A3
|
3pc
|
600bags/hour
|
1~20L
|
1.14
|
2400*1050*2100
|
|
BIB-A4
|
4pc
|
800bags/hour
|
1~20L
|
1.52
|
3200*1050*2100
|

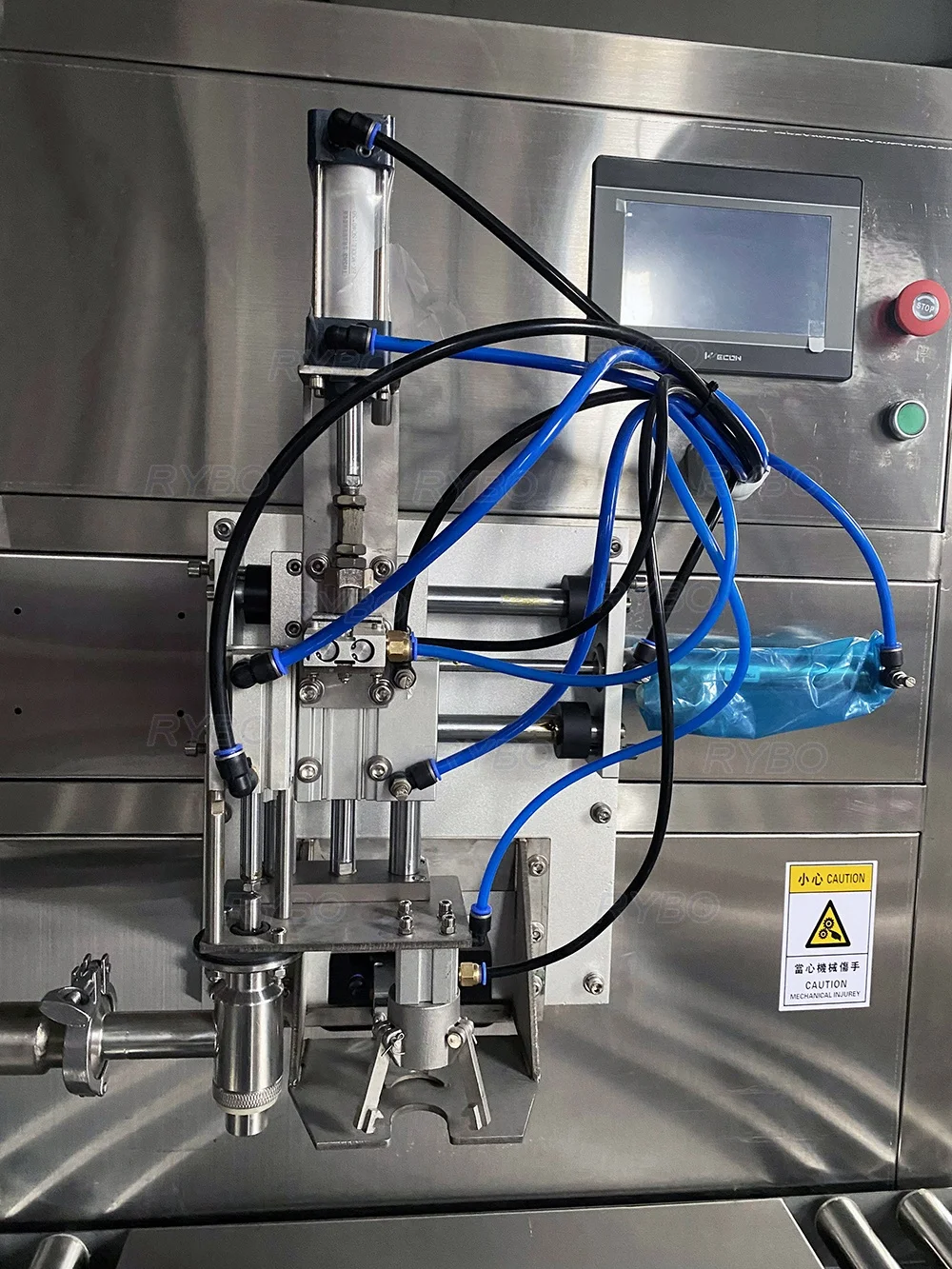

1. Smart Operating System: PLC matched touch screen, easy operated.
